Serie CKD

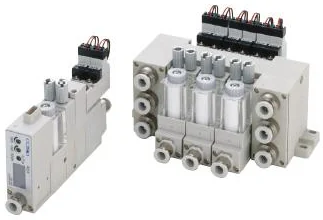

VSJ-P4・VSJM-P4
P4* Series for Rechargeable battery manufacturing processes Ejector unit (20 mm width)Burst air flow rate & vacuum ejector unit with relief pressure adjustment needle. · · [Nozzle diameter (mm)] 0.5, 0.7, 1.0, 1.2 · [Intake flow rate (L/min (ANR))] 7 to 38 · · P4：The use of copper, zinc, and nickel-based materials and electrolytic nickel plating is limited in the construction of the flow path part and sliding part.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Preventing workpieces from blowing away]
- Pressure control is added to the conventional flow rate control for vacuum burst air to prevent workpieces from being blown away.
- Shortening of vacuum time is realized by providing a relief function in the vacuum burst circuit (function to relieve extra pressure). [Manifold also available]
- Since manifold is also available, reduced piping is possible.
- There are two types of pipe leadout directions, front side and rear side, which can be selected according to the installation location. [Three types of valves]
- Three types of vacuum supply valve type, self-hold, normally open, and normally closed, are available.
Variantes de la serie
| Model No. | Product name | Nozzle diameter | Remarks |
|---|---|---|---|
| VSJ-H-P4 | Single unit / high vacuum / medium flow rate (Rechargeable battery manufacturing processes) | φ0.5, φ0.7, φ1.0, φ1.2 | |
| VSJ-L-P4 | Single unit / medium vacuum / large flow rate(Rechargeable battery manufacturing processes) | φ0.5, φ0.7, φ1.0, φ1.2 | |
| VSJ-E-P4 | Single unit / high vacuum / low flow rate(Rechargeable battery manufacturing processes) | φ0.5, φ0.7, φ1.0, φ1.2 | |
| VSJM-H-P4 | Manifold / high vacuum / medium flow rate(Rechargeable battery manufacturing processes) | φ0.5, φ0.7, φ1.0, φ1.2 | |
| VSJM-L-P4 | Manifold / medium vacuum / large flow rate (Rechargeable battery manufacturing processes) | φ0.5, φ0.7, φ1.0, φ1.2 | |
| VSJM-E-P4 | Manifold / high vacuum / low flow rate(Rechargeable battery manufacturing processes) | φ0.5, φ0.7, φ1.0, φ1.2 | |
| VSJM-Z-P4 | Manifold / mix specifications(Rechargeable battery manufacturing processes) | - |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- VSJ-P4・VSJM-P4
- Línea
- Ejector system
- Categoría
- Neumática
- Precio y entrega
- Por cotización
