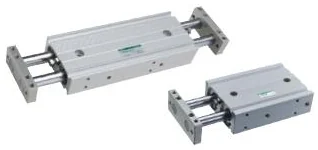

STR2-P4※

P4* Series for Rechargeable battery manufacturing processes Twin rod cylinderThe twin rod mechanism can improve the non-rotating accuracy and also double the thrust. · It has six bore sizes from ø6 to ø32 as well as various options and variations. · · P4：The use of copper, zinc, and nickel-based materials and electrolytic nickel plating is limited in the construction of the flow path part and sliding part. · P40：The use of copper, zinc, and nickel-based materials, zinc plating, and electrolytic nickel plating is limited in the construction of all parts. · P42：The use of copper, zinc, and nickel-based materials, zinc plating, and electrolytic nickel plating is limited in the construction of all parts. Local exhaust function (vacuum treatment port) is added.

• [Bearing options]
• Metal bush bearing and ball bearing are available according to the application. [High level of non-rotating accuracy]
• Two single rod cylinders fixed to the end plate in parallel.
• High non-rotating accuracy, not requiring rotation-stop. [Ultra-compact type available]
• The ultra-compact ø6 bore size has been added to the series, ideal for transportation of small articles. [Piping ports can be installed on either side]
• Since piping ports can be installed on the right or left side, piping processing according to the equipment is easy. [Easy to install]
