SSD2

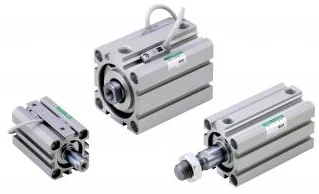

P5* / P7* Series for Cleanrooms Compact cylinder SSD2 SeriesSpace saving series with a wide range of stroke lengths and switch mounting surface options compared with conventional models. · A widely varied series of space-saving cylinders, suitable for everything from general environments to specific applications. · P7 : Exhaust treatment · P71 : Vacuum treatment · P5 : Exhaust treatment, without copper, silicon or halogen-based materials · P51 : Vacuum treatment, without copper, silicon or halogen-based materials

• [Cylinder switch grooves provided on four surfaces] (Excluding φ12, 16)
• A cylinder switch can be mounted on the same surface as the piping port, which improves visibility and maintenance efficiency. [End thread options]
• Rod ends can be selected from two options: female thread (standard) and male thread (option). [All bore sizes, T type switch mountable]
• The T type switch used in many CKD products can be mounted on cylinders of all bore sizes.
• The use of a unified switch helps to reduce stock quantity.
