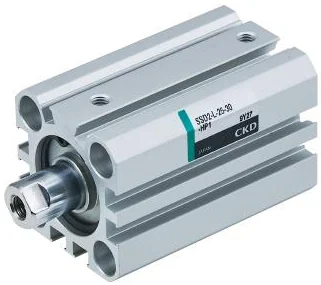

SSD2-G-FP1-HP1

FP* Series for Food manufacturing processes (High Durability Components) Compact cylinderThis is a compact cylinder with the overall length kept to a minimum. · It is ideal for space saving on any equipment. · · FP1 : Food grade lubricant (NSF H1) is used for flow paths and sliding parts. · G-HP1 : Environment Resistant Cylinder. The durability in dusty environments has been greatly improved with strong scrapers and lube keeping structures.

• [Long life in harsh environments]
• More than four times the durability and more than 5 million cycles in a dust-proof environment is realized. (Tests based on our terms and conditions) [Stable operation in harsh environments]
• A test which reproduced a dusty environment was carried out. The durability was confirmed in severe testing. [Cylinder switch grooves provided on four surfaces] (Excluding less than Φ16)
• A cylinder switch can be mounted on the same surface as the piping port, which improves visibility and maintenance efficiency. [End thread options]
• Rod ends can be selected from two options: female thread (standard) and male thread (option). [All bore sizes, T type switch mountable]
• The T type switch used in many CKD products can be mounted on cylinders of all bore sizes.
