Serie CKD
SNP-P4

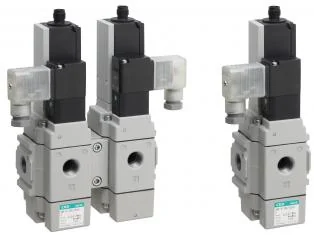

P4* Series for Rechargeable battery manufacturing processes 3-port solenoid valve with spool position detectionServes as a solenoid shut-off valve for pneumatic systems. Signal output of the valve's open / close state is possible by detecting the main valve spool position with the limit switch. Two modules can be connected to configure a double breaker circuit. · · P4：The use of copper, zinc, and nickel-based materials and electrolytic nickel plating is limited in the construction of the flow path part and sliding part.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Safety measures]
- When a circuit corresponding to ISO safety standard (ISO 13849-1) is required, it can be used as a shut-off valve. [Redundancy]
- Dual connection can be made with modules, and double shutoff is easy. [Module compatible]
- Module can be connected to FRL equipment, reducing installation steps and space.
Variantes de la serie
| Model No. | Product name | Port size | Remarks |
|---|---|---|---|
| SNP-1R-P4 | Single unit(terminal box right-facing) (Rechargeable battery manufacturing processes) | Rc3/8, 1/2, 3/4 | |
| SNP-1L-P4 | Single unit (terminal box left-facing) (Rechargeable battery manufacturing processes) | Rc3/8, 1/2, 3/4 | |
| SNP-2-P4 | 2 modules (Rechargeable battery manufacturing processes) | Rc3/8, 1/2, 3/4 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- SNP-P4
- Línea
- Pilot operated 3-port valves
- Categoría
- Neumática
- Precio y entrega
- Por cotización
