Serie CKD
SMW2

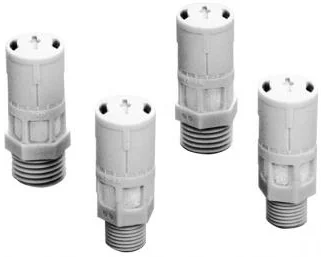

P4* Series for Rechargeable battery manufacturing processes Metering valve with silencerDevice that reduces exhaust noise caused by discharged air. Compact with a noise reduction effect of 23 dB [A] and over. · · The use of copper, zinc, and nickel-based materials and electrolytic nickel plating is limited in the construction of the flow path part and sliding part as standard.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Compact / lightweight / high flow rate]
- While compact and lightweight, max. effective cross-sectional area in the class is achieved. [High noise reduction effect]
- Noise reduction effect of 23 dB (A) or more. P.P. sintering element with high damping effect integrated into the body to improve noise reduction effects. [Uses push lock type needle]
- Knob with push lock mechanism enables easy and secure locking. [Environmental friendly design]
- By using plastic material only, sorting at disposal is eliminated.
Variantes de la serie
| Model No. | Product name | Port size (R) | Cylinder bore size | Noise reduction effect (dB [A]) | Remarks |
|---|---|---|---|---|---|
| SMW2-6A | Metering valve with silencer (Rechargeable battery manufacturing processes) | 1/8 | Φ20 to Φ50 | 23 or more | |
| SMW2-8A | Metering valve with silencer (Rechargeable battery manufacturing processes) | 1/4 | Φ32 to Φ75 | 28 or more |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- SMW2
- Línea
- Silencers
- Categoría
- Neumática
- Precio y entrega
- Por cotización
