CKDDistribuidor autorizado
Serie CKD
SMG-G-HP1

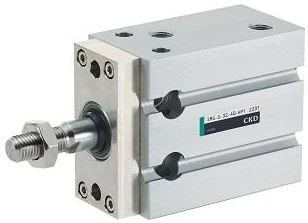

High Durability Components HP Series (Environment Resistant) Compact cylinderLight weight, space-saving, compact cylinder with a simple shape for easier mounting. Detection switch fits into the body with barely any protrusion. · G-HP1 : Environment Resistant Cylinder. The durability in dusty environments has been greatly improved with strong scrapers and lube keeping structures.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Long life in harsh environments]
- More than four times the durability and more than 5 million cycles in a dust-proof environment is realized. (Tests based on our terms and conditions) [Stable operation in harsh environments]
- A test which reproduced a dusty environment was carried out.
- The durability was confirmed in severe testing. [Cylinder part]
- Dust intrusion prevention and lubrication are improved by a scraper and a lub keeper. [Simple shape for flexible mounting]
- Integration of mount block enables flexible selection from five direct mounting surfaces as standard.
Variantes de la serie
| Model No. | Product name | Bore size | Stroke | Remarks |
|---|---|---|---|---|
| SMG-G-HP1 | Double acting / high durability, environment resistant (High Durability Component) | Φ6～Φ32 | 5～100 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- SMG-G-HP1
- Línea
- Space saving cylinders
- Categoría
- Neumática
- Precio y entrega
- Por cotización
