Serie CKD

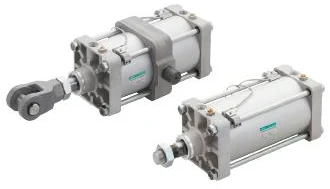

SCS2
Medium bore size cylinderLarge bore size (φ125 to φ250) series of standard tie rod cylinders. Cylinders with a wide range of choices, high rigidity and more reliability. Lighter than ever before, adopting an aluminum cover and tube to halve the product weight.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Port and needle on the same surface]
- The air supply / exhaust ports and cushion needle are positioned on the same surface.
- Easier installation and adjustment of the cylinder. [Mounting dimension compatibility]
- Mounting dimensions compatible with the discontinued conventional product SCS Series. (Piping port position on the opposite side) [Compact switch equipped]
- The smaller T switch than the conventional
- Saves space by eliminating switch protrusions when mounted. [Magnet provided as standard] (SCS2-LN / SCS2-LH)
Variantes de la serie
| Model No. | Product name | Bore size | Min. stroke length | Max. stroke length | Remarks |
|---|---|---|---|---|---|
| SCS2 | Double acting / single rod / lubrication | φ125, φ140, φ160, φ180, φ200, φ250 | 1 mm | 1200 mm | |
| SCS2-N | Double acting / single rod / no-lubrication | φ125, φ140, φ160, φ180, φ200, φ250 | 1 mm | 1200 mm | |
| SCS2-P | Double acting / stroke adjustable | φ125, φ140, φ160, φ180, φ200, φ250 | 25 mm | 1200 mm | |
| SCS2-T | Double acting / heat resistance | φ125, φ140, φ160, φ180, φ200, φ250 | 1 mm | 1200 mm | |
| SCS2-D | Double acting / double rod | φ125, φ140, φ160, φ180, φ200, φ250 | 1 mm | 1200 mm | |
| SCS2-LND | Double acting / double rod / no-lubrication | φ125, φ140, φ160, φ180, φ200, φ250 | 1 mm | 1200 mm | |
| SCS2-B | Double acting / back to back | φ125, φ140, φ160, φ180, φ200, φ250 | 1 mm | 1200 mm | |
| SCS2-W | Double acting / two-stage | φ125, φ140, φ160, φ180, φ200, φ250 | 1 mm | 1200 mm | |
| SCS2-H | Double acting / low hydraulic | φ125, φ140, φ160, φ180, φ200, φ250 | 20 mm | 1200 mm | |
| SCS2-G | Double acting / rubber scraper | φ125, φ140, φ160, φ180, φ200, φ250 | 1 mm | 1200 mm |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- SCS2
- Línea
- Standard cylinders
- Categoría
- Neumática
- Precio y entrega
- Por cotización
