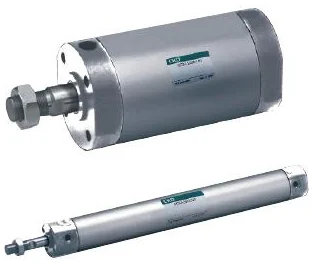

SCM-P4※
P4* Series for Rechargeable battery manufacturing processes Round shaped cylinderMedium bore size (φ20 to φ100) series of standard round cylinders. Slim body and a wide variety of bore sizes and variations. The series is the smallest in the standard cylinders. · · P4：The use of copper, zinc, and nickel-based materials and electrolytic nickel plating is limited in the construction of the flow path part and sliding part. · P40：The use of copper, zinc, and nickel-based materials, zinc plating, and electrolytic nickel plating is limited in the construction of all parts. · P42：The use of copper, zinc, and nickel-based materials, zinc plating, and electrolytic nickel plating is limited in the construction of all parts. Local exhaust function (vacuum treatment port) is added.
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- [High workability]
- A knob has been attached to the cushion needle for easy adjustment.
- Better workability has been enabled by mounting with four bolts.
- Mountable with a general tool. [Selectable switch mounting]
- Select from 2 types, band and rail.
- The time for switch position setting during maintenance can be reduced significantly.
Variantes de la serie
| Model No. | Product name | Bore size | Min. stroke length | Remarks |
|---|---|---|---|---|
| SCM-P4※ | Double acting / single rod (Rechargeable battery manufacturing processes) | φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100 | 10 | |
| SCM-X-P4※ | Single acting / push type (Rechargeable battery manufacturing processes) | Φ20, Φ25, Φ32, Φ40 | 5 | |
| SCM-Y-P4※ | Single acting / pull type (Rechargeable battery manufacturing processes) | Φ20, Φ25, Φ32, Φ40 | 10 | |
| SCM-P-P4※ | Double acting / stroke adjustable (push) (Rechargeable battery manufacturing processes) | Φ20, Φ25, Φ32, Φ40, Φ50, Φ63 | 10 | |
| SCM-R-P4※ | Double acting / stroke adjustable (pull) (Rechargeable battery manufacturing processes) | Φ20, Φ25, Φ32, Φ40, Φ50, Φ63 | 10 | |
| SCM-O-P4※ | Double acting / low speed (Rechargeable battery manufacturing processes) | Φ20, Φ25, Φ32, Φ40, Φ50, Φ63, Φ80, Φ100 | 10 | |
| SCM-U-P4※ | Double acting / low friction (Rechargeable battery manufacturing processes) | φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100 | 10 | |
| SCM-D-P※ | Double acting / double rod (Rechargeable battery manufacturing processes) | φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100 | 10 | |
| SCM-B-P4※ | Double acting / back-to-back (Rechargeable battery manufacturing processes) | φ20, φ25, φ32, φ40, φ50, φ63 | 10 | |
| SCM-W-P4※ | Double acting / two-stage (Rechargeable battery manufacturing processes) | φ20, φ25, φ32, φ40, φ50, φ63 | 10 | |
| SCM-W4-P4※ | Double acting / tandem (Rechargeable battery manufacturing processes) | φ20, φ25, φ32, φ40, φ50, φ63 | 10 | |
| SCM-M-P4※ | Double acting / rotation-stop (Rechargeable battery manufacturing processes) | φ20, φ25, φ32, φ40, φ50, φ63 | 10 | |
| SCM-LD-P4※ | Double acting / direct mounting foot (Rechargeable battery manufacturing processes) | φ20, φ25, φ32, φ40, φ50, φ63 | 10 | |
| SCM-T-P4※ | Double acting / heat resistance (Rechargeable battery manufacturing processes) | φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100 | 10 | |
| SCM-Q-P4※ | Double acting / position locking (Rechargeable battery manufacturing processes) | φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100 | 5 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- SCM-P4※
- Línea
- Standard cylinders
- Categoría
- Neumática
- Precio y entrega
- Por cotización
