Serie CKD

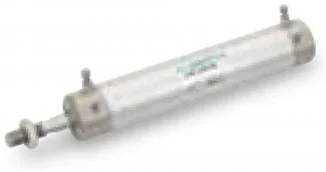

SCM-FP1
FP* Series for Food manufacturing processes Round shaped cylinderMedium bore size (φ20 to φ100) series of standard round cylinders. Slim body and a wide variety of bore sizes and variations. The series is the smallest in the standard cylinders. · FP1 : Food grade lubricant (NSF H1) is used for flow paths and sliding parts.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [High workability]
- A knob has been attached to the cushion needle for easy adjustment.
- Better workability has been enabled by mounting with four bolts.
- Mountable with a general tool. [Selectable switch mounting]
- Select from 2 types, band and rail.
- The time for switch position setting during maintenance can be reduced significantly.
Variantes de la serie
| Model No. | Product name | Bore size | Min. stroke length | Max. stroke length | Remarks |
|---|---|---|---|---|---|
| SCM-FP1 | Double acting / single rod (food manufacturing processes) | φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100 | 10 | 1500 | |
| SCM-X-FP1 | Single acting / push type (food manufacturing processes) | φ20, φ25, φ32, φ40 | 5 | 200 | |
| SCM-Y-FP1 | Single acting / pull (food manufacturing processes) | φ20, φ25, φ32, φ40 | 10 | 600 | |
| SCM-D-FP1 | Double acting / double rod (food manufacturing processes) | φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100 | 10 | 600 | |
| SCM-W4-FP1 | Double acting / tandem (food manufacturing processes) | φ20, φ25, φ32, φ40, φ50, φ63 | 10 | 600 | |
| SCM-M-FP1 | Double acting / rotation-stop (food manufacturing processes) | φ20, φ25, φ32, φ40, φ50, φ63 | 10 | 600 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- SCM-FP1
- Línea
- Standard cylinders
- Categoría
- Neumática
- Precio y entrega
- Por cotización
