Serie CKD

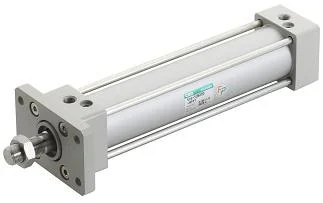

SCG-FP1
FP* Series for Food manufacturing processes Tie rod cylinderMedium bore size (φ32 to φ100) series of standard tie rod cylinders. Environment-friendly cylinder that has eliminated hazardous substances. Suitable for all applications with reliable performance and a wide variety of options. · FP1 : Food grade lubricant (NSF H1) is used for flow paths and sliding parts.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Port and needle on the same surface]
- The air supply / exhaust ports and cushion needle are positioned on the same surface.
- Tie rod general-purpose cylinder with easy installation and adjustment of the cylinder. [Compact switch equipped]
- The smaller T switch than the conventional
- Contributes to space saving by eliminating switch protrusions when mounted. [A wide variety of options and variations]
- Various variations including position locking, rotation-stop and rubber scraper are available.
Variantes de la serie
| Model No. | Product name | Bore size | Min. stroke length | Max. stroke length | Remarks |
|---|---|---|---|---|---|
| SCG-FP1 | Double acting / single rod (food manufacturing processes) | φ32, φ40, φ50, φ63, φ80, φ100 | 1 | 800 | |
| SCG-D-FP1 | Double acting / double rod (food manufacturing processes) | φ32, φ40, φ50, φ63, φ80, φ100 | 1 | 800 | |
| SCG-M-FP1 | Double acting / rotation-stop (food manufacturing processes) | φ32, φ40, φ50, φ63 | 1 | 600 | |
| SCG-G-FP1 | Double acting / rubber scraper (food manufacturing processes) | φ32, φ40, φ50, φ63, φ80, φ100 | 1 | 800 | |
| SCG-G2-FP1 | Double acting / coolant proof (packing: NBR) (food manufacturing processes) | φ40, φ50, φ63, φ80, φ100 | 1 | 800 | |
| SCG-G3-FP1 | Double acting / coolant proof (packing: FKM) (food manufacturing processes) | φ40, φ50, φ63, φ80, φ100 | 1 | 800 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- SCG-FP1
- Línea
- Standard cylinders
- Categoría
- Neumática
- Precio y entrega
- Por cotización
