Serie CKD

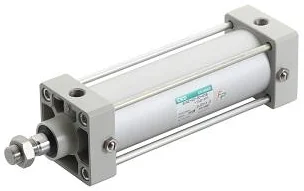

SCA2-P4※
P4* Series for Rechargeable battery manufacturing processes Medium bore size cylinderMedium bore size (φ40 to φ100) series of standard tie rod cylinders. Cylinders with wide range of choices, long service life and high reliability thanks to the CKD original packing structure. · · P4：The use of copper, zinc, and nickel-based materials and electrolytic nickel plating is limited in the construction of the flow path part and sliding part. · P40：The use of copper, zinc, and nickel-based materials, zinc plating, and electrolytic nickel plating is limited in the construction of all parts.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Lightweight / high corrosion resistance]
- Aluminum main parts including both end covers, piston and tube have enabled
- Lighter body with higher corrosion resistance and shock resistance. [Mounting brackets / switch type easy to change]
- The adapter compatible with different mounting brackets enables easy replacement and helps efficient inventory management.
- The cylinder is equipped with a magnet as standard, allowing modification to the type with switch by simply mounting the desired sensor switch.
Variantes de la serie
| Model No. | Product name | Bore size | Min. stroke length | Max. stroke length | Remarks |
|---|---|---|---|---|---|
| SCA2-P4※ | Double acting (Rechargeable battery manufacturing processes) | φ40, φ50, φ63, φ80, φ100 | 1 | 800 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- SCA2-P4※
- Línea
- Standard cylinders
- Categoría
- Neumática
- Precio y entrega
- Por cotización
