CKDDistribuidor autorizado
Serie CKD
SC3W-P4

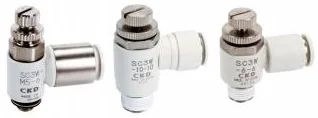

P4* Series for Rechargeable battery manufacturing processes Speed controller elbow with push-in fittingElbow speed control valve with push-in fitting. Piping screw is coated with sealant. · · P4：The use of copper, zinc, and nickel-based materials and electrolytic nickel plating is limited in the construction of the flow path part and sliding part.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Flexible piping direction]
- Low speed is available as an option, ideal for control of devices with lower flow rate which require fine adjustment such as fine speed cylinders.
- Flame-resistant material (UL94 Standards V-0 equivalent) is adopted for resin parts.
Variantes de la serie
| Model No. | Product name | Port size (R) | Compatible tube O.D. | Remarks |
|---|---|---|---|---|
| SC3W-M3-P4 | Speed controller Elbow with push-in fitting (Rechargeable battery manufacturing processes) | M3 | Φ3.2, Φ4 | |
| SC3W-M5-P4 | Speed controller Elbow with push-in fitting (Rechargeable battery manufacturing processes) | M5 | Φ3.2, Φ4, Φ6 | |
| SC3W-6-P4 | Speed controller Elbow with push-in fitting (Rechargeable battery manufacturing processes) | 1/8 | Φ4, Φ6, Φ8 | |
| SC3W-8-P4 | Speed controller Elbow with push-in fitting (Rechargeable battery manufacturing processes) | 1/4 | Φ6, Φ8, Φ10 | |
| SC3W-10-P4 | Speed controller Elbow with push-in fitting (Rechargeable battery manufacturing processes) | 3/8 | Φ6, Φ8, Φ10, Φ12 | |
| SC3W-15 -P4 | Speed controller Elbow with push-in fitting (Rechargeable battery manufacturing processes) | 1/2 | Φ10, Φ12 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- SC3W-P4
- Línea
- Speed control valves, throttle valves
- Categoría
- Neumática
- Precio y entrega
- Por cotización
