CKDDistribuidor autorizado
Serie CKD

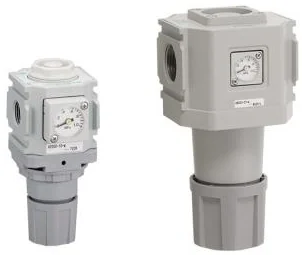

R※※00
RegulatorCompact, pressure gauge embedded. The pressure can be adjusted without tools. · · In addition to the standard products, there are the following variations. · P6: Copper Ion Restricted (No copper/PTFE Specification) · P11: Ozone Resistant
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [NEW: Regulator knob up as option]
- Improved ease of use is realized by placing the regulator knob on top for use. Increased flexibility in design. [Pressure adjustment without tools]
- Pressure adjustments can be made with one hand and locking performed with one push. Manual knob operation is easy when setting pressure as well. [Easily handles panel mounting as well]
- When the panel mounting nut is loosened, the nut acts as a jack and enables the knob to be removed easily. Fix the nut to mount in the panel. The L type bracket is also installed similarly to the nut. [F.R.L. combination]
- Systems can be easily upgraded using unified key boundary dimensions and a diverse range of options and variations.
Variantes de la serie
| Model No. | Product name | Port size (Rc, NPT, G) | Max. working pressure (MPa) | Set pressure (MPa) | Remarks |
|---|---|---|---|---|---|
| R※000 | Regulator | 1/8, 1/4, 3/8, 1/2, 3/4, 1 | 1.0 | 0.05 to 0.85 | |
| R※100 | Reverse regulator | 1/8, 1/4, 3/8, 1/2, 3/4, 1 | 1.0 | 0.05 to 0.85 | |
| R※000-P6 | Regulator Copper and PTFE free | 1/8, 1/4, 3/8, 1/2, 3/4, 1 | 1.0 | 0.05 to 0.85 | |
| R※100-P6 | Reverse regulator Copper and PTFE free | 1/8, 1/4, 3/8, 1/2, 3/4, 1 | 1.0 | 0.05 to 0.85 | |
| R※000-P11 | Ozone Resistant Filter Regulator | 1/8, 1/4, 3/8, 1/2, 3/4, 1 | 1.0 | 0.05 to 0.85 | |
| R※100-P11 | Ozone Resistant Reverse Regulator | 1/8, 1/4, 3/8, 1/2, 3/4, 1 | 1.0 | 0.05 to 0.85 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- R※※00
- Línea
- Regulators
- Categoría
- Neumática
- Precio y entrega
- Por cotización
