Serie CKD

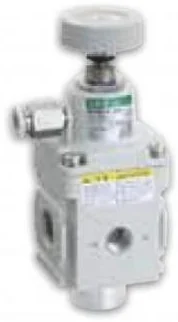

RP1000-P4※・RP2000-P4※
P4* Series for Rechargeable battery manufacturing processes Precision regulatorA compact type with a large relief flow rate that demonstrates highly precise pressure control and stable flow characteristics with low pressure drop. · · P4：The use of copper, zinc, and nickel-based materials and electrolytic nickel plating is limited in the construction of the flow path part and sliding part. · P40：The use of copper, zinc, and nickel-based materials, zinc plating, and electrolytic nickel plating is limited in the construction of all parts.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Excellent micro pressure/low pressure range performance] (RP1000 Series)
- Uses pilot pressure control method with nozzle and flapper.
- Enables highly accurate and stable precision pressure control within the set pressure range of 0.003 to 0.4 MPa.
- Particularly ideal for control performance within the low pressure range of 0.03 to 0.1 MPa.
- Compact size of □42 mm, yet boasts high relief flow rate. [Stable flow characteristics] (RP1000 Series)
- Stable flow characteristics with minimal pressure drop.
Variantes de la serie
| Model No. | Product name | Port size (Rc) | Set pressure(MPa) | Remarks |
|---|---|---|---|---|
| RP1000-8-02P4 | Precision regulator (Rechargeable battery manufacturing processes) | 1/4 | 0.003 to 0.2 | |
| RP1000-8-02P40 | Precision regulator (Rechargeable battery manufacturing processes) | 1/4 | 0.003 to 0.2 | |
| RP1000-8-04P4 | Precision regulator (Rechargeable battery manufacturing processes) | 1/4 | 0.005 to 0.4 | |
| RP1000-8-04P40 | Precision regulator (Rechargeable battery manufacturing processes) | 1/4 | 0.005 to 0.4 | |
| RP1000-8-07P4 | Precision regulator (Rechargeable battery manufacturing processes) | 1/4 | 0.005 to 0.7 | |
| RP1000-8-07P40 | Precision regulator (Rechargeable battery manufacturing processes) | 1/4 | 0.005 to 0.7 | |
| RP2000-8-08P4 | Precision regulator (Rechargeable battery manufacturing processes) | 1/4 | 0.03 to 0.85 | |
| RP2000-8-08P40 | Precision regulator (Rechargeable battery manufacturing processes) | 1/4 | 0.03 to 0.85 | |
| RP2000-10-08P4 | Precision regulator (Rechargeable battery manufacturing processes) | 3/8 | 0.03 to 0.85 | |
| RP2000-10-08P40 | Precision regulator (Rechargeable battery manufacturing processes) | 3/8 | 0.03 to 0.85 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- RP1000-P4※・RP2000-P4※
- Línea
- Regulators
- Categoría
- Neumática
- Precio y entrega
- Por cotización
