Serie CKD
QEL

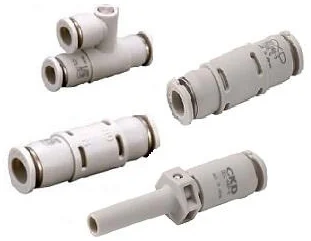

Quick exhaust valve with push-in fittingLineup includes compact/space-saving In-line and Plug types. · The in-line type has built-in φ4 and φ6 push-in fittings, with atmospheric release and exhaust port fittings available. · The plug type can be directly attached to the actuator and is effective in preventing condensation caused by adiabatic expansion.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Condensation countermeasures]
- Countering condensation caused by adiabatic expansion of small actuators can be easily implemented. The result is the realization of a long service life and stable operation of the actuator. [Easy retrofitting]
- The plug shape allows for easy mounting near the actuator. It has a space-saving and clean design. [High speed drive]
- Effective for high-speed driving of actuators. [Compact and space-saving inline type]
- Built-in φ4 and φ6 push-in fittings. Available in atmospheric release type and with exhaust port fittings.
Variantes de la serie
| Model No. | Product name | Compatible tube O.D. | Exhaust specification | Remarks |
|---|---|---|---|---|
| QEL-※※P | Quick exhaust valve with push-in fitting | φ4, φ6 | Atmospheric release type | |
| QEL-H※※ | Quick exhaust valve with push-in fitting | φ4, φ6 | With exhaust port fitting, atmospheric release type |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- QEL
- Línea
- Check valves, shuttle valves, quick exhaust valves
- Categoría
- Neumática
- Precio y entrega
- Por cotización
