Serie CKD

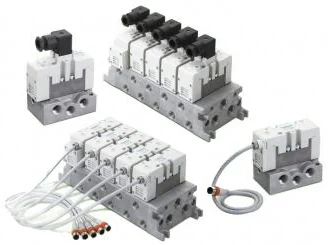

PV5G・PV5・GMF
Pilot operated 5-port ISO valveISO valves are pilot operated 5-port valves in compliance with the ISO standards which regulate international valve mounting dimensions. · [Applicable cylinder: φ20 to φ160]
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Simple, easy piping]
- The valve body does not protrude over the base of the manifold, and does not interfere with the rotation of a wrench or similar tool,
- thus promoting efficient piping work. [Compact body size]
- 10% less compared to CKD conventional products. [Improved manual operation]
- Manual buttons and conduction indicator lamp are optimally positioned in consideration of the ease of operation, visibility, etc. [Improved reliability and safety]
- Rubber cover for manual override button. Prevents intake of foreign matter leading to misoperation.peration, visibility, etc. [Environment conditions]
Variantes de la serie
| Model No. | Product name | Port size | Remarks |
|---|---|---|---|
| PV5G-※ | DIN terminal box | Rc1/4, 3/8, 1/2, 3/4 | |
| PV5-※Ｒ | I/O connector | Rc1/4, 3/8, 1/2, 3/4 | |
| GMF1※ | Manifold base for ISO size 1 | Rc1/4, 3/8, 1/2 | |
| GMF2※ | Manifold base for ISO size 2 | Rc3/8, 1/2, 3/4 | |
| GMFZ | Mix manifold | Rc3/8, 1/2, 3/4 | |
| CMF※-P | Independent supply spacer | ||
| CMF※-R | Independent exhaust spacer | ||
| CM1-00 | Masking plate | ||
| CMF※-SR | Spacer regulator | ||
| CMF※-PC | Air pilot check valve |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- PV5G・PV5・GMF
- Línea
- ISO 5-port solenoid valves
- Categoría
- Neumática
- Precio y entrega
- Por cotización
