CKDDistribuidor autorizado
Serie CKD
PF・PFU

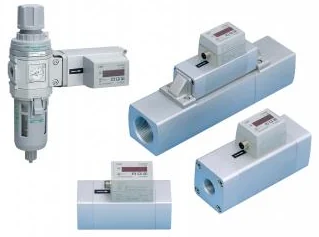

Pneumatic flow rate sensor (integrated display FLUEREX)【Discontinued model】 · Alternative model : PFD Series · · Pneumatic flow rate sensor for medium / large flow rate that’s very useful in grasping the current situation and confirming the effect of energy.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Broad flow rate range]
- [PF-F Series]
- 25 to 500 ℓ/min
- 50 to 1000 ℓ/min
- 100 to 2000 ℓ/min
- 200 to 4000 ℓ/min
Variantes de la serie
| Model No. | Product name | Flow rate range (L/min) | Port size | Remarks |
|---|---|---|---|---|
| PF500F | Flow rate sensor for compressed air (Medium flow rate) | 25 to 500 | Rc3/8, Rc1/2 | Discontinued · 2019 03 31 Old Catalog |
| PF2000F | Flow rate sensor for compressed air (Medium flow rate) | 100 to 2000 | Rc1/2, Rc3/4 | Discontinued · 2019 03 31 Old Catalog |
| PF4000F | Flow rate sensor for compressed air (Medium flow rate) | 200 to 4000 | Rc3/4, Rc1 | Discontinued · 2019 03 31 Old Catalog |
| PF8000F | Flow rate sensor for compressed air (Large flow rate) | 0.40 to 8.00㎥/min（normal） | Rc1 1/2 | Discontinued · 2019 03 31 Old Catalog |
| PF16000F | Flow rate sensor for compressed air (Large flow rate) | 0.80 to 16.00㎥/min（normal） | Rc2 | Discontinued · 2019 03 31 Old Catalog |
| PFU500F | Flow rate sensor for compressed air Module type | 25 to 500 | Rc3/8 | Discontinued · 2019 03 31 Old Catalog |
| PFU1000F | Flow rate sensor for compressed air modular connection type | 50 to 1000 | Rc3/8 | Discontinued · 2019 03 31 Old Catalog |
| PFU2000F | Flow rate sensor for compressed air modular connection type | 100 to 2000 | Rc1/2 | Discontinued · 2019 03 31 Old Catalog |
| PF1000F | Flow rate sensor for compressed air (Medium flow rate) | 50 to 1000 | Rc3/8, Rc1/2 | Discontinued · 2006 11 30 Old Catalog |
| PF500D | Flow rate sensor for compressed air | 25 to 500 | Rc3/8, Rc1/2 | Discontinued · 2006 11 30 Old Catalog |
| PF1000D | Flow rate sensor for compressed air | 50 to 1000 | Rc3/8, Rc1/2 | Discontinued · 2006 11 30 Old Catalog |
| PF2000D | Flow rate sensor for compressed air | 100 to 2000 | Rc3/8, Rc1/2 | Discontinued · 2006 11 30 Old Catalog |
| PF4000D | Flow rate sensor for compressed air | 200 to 4000 | Rc1/2, Rc1 | Discontinued · 2006 11 30 Old Catalog |
| PF8000D | Flow rate sensor for compressed air | 400 to 8000 | Rc1, Rc1 1/2 | Discontinued · 2006 11 30 Old Catalog |
| PF16000E | Flow rate sensor for compressed air | 800 to 16000 | Rc2 | Discontinued · 2006 11 30 Old Catalog |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- PF・PFU
- Línea
- Flow sensors / controllers
- Categoría
- Sensores
- Precio y entrega
- Por cotización
