Serie CKD

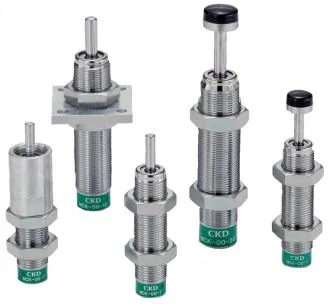

NCK-P4※
P4* Series for Rechargeable battery manufacturing processes Shock absorber fixed typeIdeal buffering device for stopping a workpiece with thrust at medium or slow speeds. · Slit orifice method that was thought difficult to realize is used. Due to this structure, high absorbing performance and linear soft stop, etc., are achieved in slow speed operation range. · · P4 : Copper, Zinc, Nickel materials and electrolytic nickel plating are restricted in the flow path and sliding areas. · P40 : Copper, Zinc, Nickel materials and electrolytic nickel plating are restricted for all parts.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Available for thrust energy]
- Absorbing thrust energy of cylinder, etc., is efficient.
- An extremely soft stop is realized. [Smooth absorbing even if slowly operated]
- Superior characteristics in slow speed range enable smooth impact absorption. [Compact but large absorbing force]
- Compact and slim design which absorbs a lot of energy.
- A shock absorber remarkably efficient at saving space. [Slit orifice]
Variantes de la serie
| Model No. | Product name | Max. absorbed energy (J) | Thread size (mm) | Stroke length (mm) | Remarks |
|---|---|---|---|---|---|
| NCK-00-P4※ | Basic (Rechargeable battery manufacturing processes) | 1 to 200 | M8 x 0.75, M10 x 1.0, M12 x 1.0, M14 x 1.5, M20 x 1.5, M25 x 1.5, M27 x 1.5 | 4.5, 6, 8, 10, 15, 20, 25, 30 | |
| NCK-FA-P4※ | Flange (Rechargeable battery manufacturing processes) | 1 to 200 | M8 x 0.75, M10 x 1.0, M12 x 1.0, M14 x 1.5, M20 x 1.5, M25 x 1.5, M27 x 1.5 | 4.5, 6, 8, 10, 15, 20, 25, 30 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- NCK-P4※
- Línea
- Shock absorbers
- Categoría
- Neumática
- Precio y entrega
- Por cotización
