Serie CKD

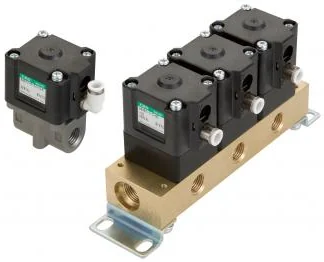

NAB・GNAB
Compact air operated 2-port valveIt is a compact air operated valve that supports port sizes of Rc1/4 and 3/8. · It supports a wide variety of fluids by selecting the corresponding body and sealing material, and can be reduced in weight by selecting the cylinder cover resin type.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Supports multiple fluids]
- The body material (copper alloy/stainless steel) and sealing material (nitrile rubber/fluoro rubber) can be selected accordingly to support various fluids. [Lightweight]
- It is compact, lightweight and can be further reduced in weight by selecting PPS resin as the cylinder cover material. [Easy air piping]
- In connection for the external pilot air, integrated fitting for fiber tube (φ1.8 mm air tube) can be selected.
Variantes de la serie
| Model No. | Product name | Port size | Body material | Sealant | Remarks |
|---|---|---|---|---|---|
| NAB1 | NC | Rc1/4, 3/8 | Copper alloy/stainless steel | Nitrile rubber/fluoro rubber | |
| NAB2 | NO | Rc1/4, 3/8 | Copper alloy/stainless steel | Nitrile rubber/fluoro rubber | |
| NAB3 | Double acting | Rc1/4, 3/8 | Copper alloy/stainless steel | Nitrile rubber/fluoro rubber |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- NAB・GNAB
- Línea
- Air operated valves (cylinder valves)
- Categoría
- Neumática
- Precio y entrega
- Por cotización
