Serie CKD

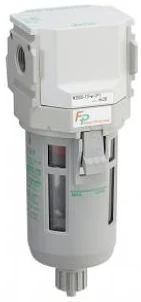

MX※000-W-FP1
FP* Series for Food manufacturing processes High performance oil mist filterSecondary oil content 0.001 mg/㎥ Appropriate for optical devices, such as optical positioning devices and laser processing systems. · FP1 : Food grade lubricant (NSF H1) is used for flow paths and sliding parts.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [High-performance with 10x oil removal]
- Highly efficient oil removing mantle removes oil up to a secondary oil concentration 0.001 mg/m3.
- High-performance oil mist filter with x10 (compared to oil mist filter M Series) oil removal capacity. [Mantle structure]
- Foam layer: Oil is efficiently collected to prevent outflow to the secondary side.
- Pre-filter support layer: The life of the mantle (element) is extended by removing solid particles.
- Stainless steel support tube: Protection against external impact and high differential pressure.
Variantes de la serie
| Model No. | Product name | Port size (Rc, NPT, G) | Filtration (μm) | Secondary side oil concentration (mg/㎥) | Remarks |
|---|---|---|---|---|---|
| MX※000-W-FP1 | High-performance oil mist filter (food manufacturing processes) | 1/4, 3/8, 1/2, 3/4, 1 | 0.01 | 0.001 or less |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- MX※000-W-FP1
- Línea
- Filters
- Categoría
- Neumática
- Precio y entrega
- Por cotización
