Serie CKD
MVC

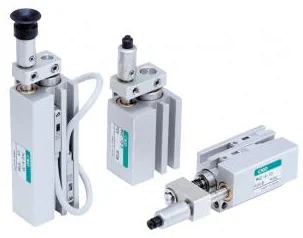

Compact Cylinder with Vacuum PadThis cylinder is a compact cylinder whose end is equipped with a vacuum pad. Because the suction pad port is attached to the body, the piping is not moved when the cylinder activates. The ideal cylinder for pick and place.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [High precision rotation-stop mechanism]
- Guide rod for rotation-stop is provided and prevents rotation of the rod with excellent non-rotating accuracy. [Space saving design]
- Workpiece suction portion and vacuum path are provided on the guide rod to reduce the total length of the cylinder. [With buffer function]
- Even if the vacuum portion strikes against the workpiece when pushing, the buffer function activates to protect the workpiece and cylinder. [Direct mounting from 2 faces]
- Can be mounted directly from 2 surface directions, with its square body. [Wide selection of suction pads]
- Socket vacuum pad is available in a wide range of 24 types with external dimensions φ2 to 10.
Variantes de la serie
| Model No. | Product name | Bore size | Standard stroke length (mm) | Remarks |
|---|---|---|---|---|
| MVC | Double acting / single rod | φ6, φ10 | 5, 10, 15, 20, 25, 30 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- MVC
- Línea
- Special cylinders
- Categoría
- Neumática
- Precio y entrega
- Por cotización
