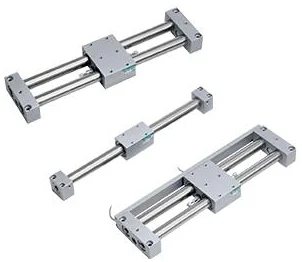

MRL2

P5* / P7* Series for Cleanrooms Magnet type rodless cylinderThe newly adopted lubrication mechanism has largely improved the service life and operational stability of the magnet type rodless cylinder. · P72 : Low-dust generating exhaust treatment · P52 : Low-dust generating exhaust treatment, without copper, silicon or halogen-based materials

• [Equipped with lubricating mechanism: lubricator]
• A fiber assemblage (lubricator) soaked with grease is mounted on the sliding portions of the piston and slider.
• This enables stable lubrication to prevent wear for long periods.
• A significant improvement of service life (by more than 2-fold compared to our previous models) and stabilization of operation have been realized. [Features of lubricator (1): Lubrication supplying / absorbing function]
• Due to the effects of the capillary phenomenon, the soaked grease can be evenly applied to the sliding surface in a stable manner while absorbing any excess grease. Note) Use the scraper to wash the tube surface directly with cleaning liquid. [Features of lubricator (2): Dust wiper function]
• As well as dust, the powder from packing wear, etc., is captured within the fiber assemblage to reduce dirt from accumulating on the sliding portions. (The conventional powerful scraper is also available.) [Environmentally friendly]
