Serie CKD

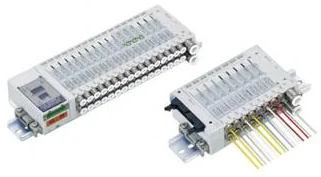

MN3E・MN4E
P5* / P7* Series for Cleanrooms PLC-compatible block manifoldMore compact (39.5 mm high) and high-performance cassette 3, 4-port block manifold is also available. · [Cylinder bore size: φ20 to φ40] · P70 : Exhaust treatment
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Thin / space saving]
- MN3/4E00 Series is the thinnest at 7 mm, contributing to space saving.
- MN3/4E 0 series is a 10 mm high performance block manifold not only contributing to space saving, but also offering excellent responsiveness. (N3E0 Series two 3-port valves integrated type: A.B port both 12 ms) [Environmental conservation]
- Lighter weight and reduced material usage by downsizing / energy saving.
- We were among the earliest to reduce chemical substances affecting the environment, including lead-free solder and materials compatible with JIG-101A level A.
- With energy saving type (Option E), it further reduces power consumption. [Wide range of fitting variations]
Variantes de la serie
| Model No. | Product name | Valve pitch | Port size | For clean room | Remarks |
|---|---|---|---|---|---|
| MN3E00 | 3-port valve (for cleanrooms) | 7 mm | Push-in fitting φ1.8 to 4, M3 | P70 | |
| MN3E0 | 3-port valve (for cleanrooms) | 10 mm | Push-in fitting φ1.8 to 6, M5 | P70 | |
| MN4E00 | 4-port valve (for cleanrooms) | 7 mm | Push-in fitting φ1.8 to 4, M3 | P70 | |
| MN4E0 | 4-port valve (for cleanrooms) | 10 mm | Push-in fitting φ1.8 to 6, M5 | P70 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- MN3E・MN4E
- Línea
- Pilot operated 3, 4, 5-port solenoid valves
- Categoría
- Neumática
- Precio y entrega
- Por cotización
