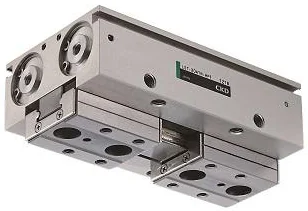

LST-HP1

Low-profile Long stroke handA thin body with a high rigidity linear guide. Advanced linear slide hand for high rigidity, long life, and high precision. It has 30% higher rigidity and more than twice the durability compared to the conventional.There are three types of strokes that you can choose for your application. · · [Bore size] φ8×2, φ12×2, φ16×2, φ20×2 · [Operating stroke length] · Short stroke: 8, 12, 16, 20mm · Middle stroke: 16, 24, 32, 40mm · Long stroke: 32, 48, 64, 80mm

• [Thin design with double piston]
• Space saving, reduced moment of inertia, high gripping power, [Long service life]
• Highly advanced sliding technology realizes durability twice that of conventional models. [Increased linear guide performance UP]
• Improved guide rigidity compared to conventional products, improved allowable moment is realized. [Reduced processes at the site]
• By adding "positioning holes" with the gripping center as reference, centering precision can be easily reproduced. [Bending resistant lead wire switch can be selected]
• In movable parts, a switch with bending resistant lead wire that is hard to break can be selected.
