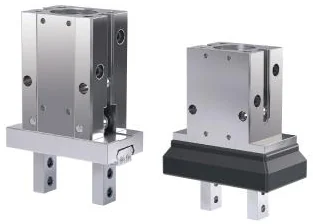

LSH-HP1

High Durability Components HP Series Linear Slide HandNEW : Added Rechargeable battery manufacturing process (P4※-HP1). · An evolutionary linear slide hand with high rigidity, long service life and high accuracy. We achieved a rigidity that is 30% higher and durability 4 times as long as the conventional model. The parallel hand that is oriented to productivity improvements, contributes to reducing the number of exchanges at the worksite such as reproducibility improvements via positioning holes, simple switch exchanges using the rail plate method, etc. · 【Bore size】φ6・φ10・φ16・φ20・φ25・φ32mm · 【Operating strokes】 · Standard:4, 6, 10, 14, 22ｍｍ · Long stroke:8, 12, 18, 22mm · · HP1 : Long life cylinder. Long life and stable operation were realized by optimizing the sliding parts.

• [High rigidity]
• Increased amount of overhang
• With the improved rigidity of the guide, an increase in the allowable moment has been achieved. [High precision]
• Repeatability of ±0.01mm
• High rigidity and high accuracy are realized by the integral structure of the guide rail and finger. [High degree of design freedom]
• Three directions of mounting are possible. [Long service life]
