Serie CKD

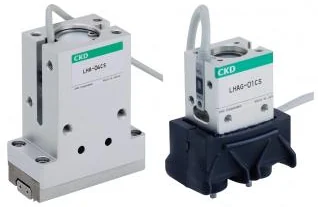

LHA-P4※・LHAG-P4※
P4* Series for Rechargeable battery manufacturing processes Linear guide handHand designed for the high durability required to handle higher-speed devices. · [Operating stroke length] · LHA: 4, 5, 9, 11, 15, 20 mm · LHAG: 5, 9, 11, 15, 20 mm · · P4：The use of copper, zinc, and nickel-based materials and electrolytic nickel plating is limited in the construction of the flow path part and sliding part. · P40：The use of copper, zinc, and nickel-based materials, zinc plating, and electrolytic nickel plating is limited in the construction of all parts.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [High rigidity / high precision/long service life]
- High rigidity, high precision and long service life are realized by adopting an integrated linear guide. [Open / close confirmation switch]
- 2 proximity switches can be installed.
Variantes de la serie
| Model No. | Product name | Option | Bore size | Port size | Remarks |
|---|---|---|---|---|---|
| LHA-※ | Double acting (Rechargeable battery manufacturing processes) | Φ6, Φ12, Φ16, Φ20, Φ25, Φ32 | M3, M5 | ||
| LHA-※-O | Single acting (normally open) (Rechargeable battery manufacturing processes) | Φ6, Φ12, Φ16, Φ20, Φ25, Φ32 | M3, M5 | ||
| LHA-※-C | Single acting (normally closed) (Rechargeable battery manufacturing processes) | Φ6, Φ12, Φ16, Φ20, Φ25, Φ32 | M3, M5 | ||
| LHAG-※ | Double acting (Rechargeable battery manufacturing processes) | With nitrile rubber cover | Φ12, Φ16, Φ20, Φ25, Φ32 | M3, M5 | |
| LHAG-※-O | Single acting (normally open) (Rechargeable battery manufacturing processes) | With nitrile rubber cover | Φ12, Φ16, Φ20, Φ25, Φ32 | M3, M5 | |
| LHAG-※-C | Single acting (normally closed) (Rechargeable battery manufacturing processes) | With nitrile rubber guard | Φ12, Φ16, Φ20, Φ25, Φ32 | M3, M5 | |
| LHAG-※-F | Double acting (Rechargeable battery manufacturing processes) | With fluoro rubber cover | Φ12, Φ16, Φ20, Φ25, Φ32 | M3, M5 | |
| LHAG-※-T | Double acting (Rechargeable battery manufacturing processes) | With silicone rubber cover | Φ12, Φ16, Φ20, Φ25, Φ32 | M3, M5 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- LHA-P4※・LHAG-P4※
- Línea
- Parallel hands
- Categoría
- Neumática
- Precio y entrega
- Por cotización
