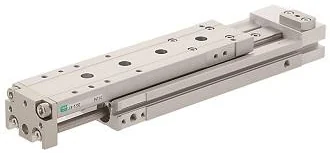

LCR-P4※

P4* Series for Rechargeable battery manufacturing processes Linear slide cylinderSymmetrical structure that is drastically lighter and with increased flexibility in design. Cylinder with highly rigid linear guide with a wide variety of options and variations. · · P4：The use of copper, zinc, and nickel-based materials and electrolytic nickel plating is limited in the construction of the flow path part and sliding part. · P40：The use of copper, zinc, and nickel-based materials, zinc plating, and electrolytic nickel plating is limited in the construction of all parts. · P42：The use of copper, zinc, and nickel-based materials, zinc plating, and electrolytic nickel plating is limited in the construction of all parts. Local exhaust function (vacuum treatment port) is added.

• [Lightweight]
• The use of an aluminum table makes it about 30% lighter than the LCG Series. [Rigid]
• Highly rigid linear guide and slide table with improved rigidity compared to LCS Series. [Increased flexibility in design]
• Designing is more flexible with the laterally symmetrical stoppers, multi-side piping, two-side installation and positioning hole availability. [A wide variety of options and variations]
• Standard, position locking and clean-room specifications are available. Options include a stroke adjusting stopper, shock absorber stopper and more.
• * Shock absorber stopper cannot be used with the clean-room specifications. [With buffer mechanism]
