Serie CKD

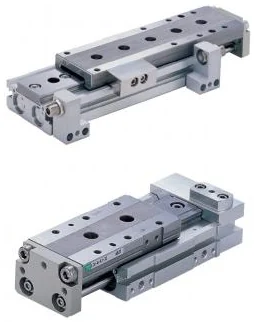

LCG
P5* / P7* Series for Cleanrooms Linear slide cylinderA high-precision, high-rigidity wide guide has been attached. Symmetrical structure with increased flexibility in design. Cylinder with linear guide with a wide variety of options and variations. · P72 : Exhaust treatment · P73 : Vacuum treatment
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Guide balls aligned in four rows on the linear guide] (φ12 or more)
- Guide balls aligned in four rows ensure stable operation in all load directions.
- The contact area of the guide balls is smaller than that in the two-row configuration with minimum friction resistance and enables smooth precision operation with a rigid body. [High rigidity]
- Stainless steel or steel adopted for slide table material.
- Increased rigidity when combined with a wide guide. [Increased flexibility in design]
- Designing is more flexible with the laterally symmetrical stoppers, multi-side piping, two-side installation and positioning hole availability.
Variantes de la serie
| Model No. | Product name | Bore size (mm) | Standard stroke length (mm) | For clean room | Remarks |
|---|---|---|---|---|---|
| LCG-P7 | Double acting/single rod (for cleanrooms) | φ6, φ8, φ12, φ16, φ20, φ25 | 10, 20, 30, 40, 50, 75, 100, 125, 150 | P72, P73 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- LCG
- Línea
- Cylinders with linear guide
- Categoría
- Neumática
- Precio y entrega
- Por cotización
