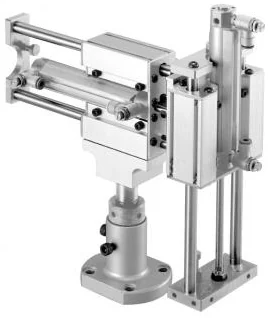

HRL-P4※

P4* Series for Rechargeable battery manufacturing processes Hybrid robot【Discontinued model】 · Pick & place unit based on horizontal drive R-axis and vertical drive Z-axis. · · P4：The use of copper, zinc, and nickel-based materials and electrolytic nickel plating is limited in the construction of the flow path part and sliding part. · P40：The use of copper, zinc, and nickel-based materials, zinc plating, and electrolytic nickel plating is limited in the construction of all parts. · P42：The use of copper, zinc, and nickel-based materials, zinc plating, and electrolytic nickel plating is limited in the construction of all parts. Local exhaust function (vacuum treatment port) is added.

• [Thin / high rigidity]
• The basic unit HRL-1 series making up the X-axis and Z-axis is thin and highly rigid. [Ball bushing]
• Since the two guide rods are received by the ball bushing, high positioning accuracy is maintained. [Shock absorber, speed controller provided as standard]
• Shock absorber integrated, speed controller attached. [Position locking mechanism]
• A position locking mechanism can be mounted if required by the application.
