Serie CKD

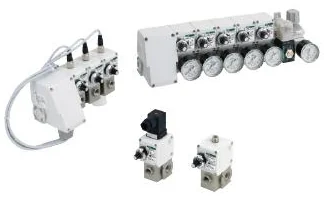

HPS・MHPS・UHPS
Close contact confirmation switchThe use of a high precision needle mechanism enables highly accurate detection such as close contact confirmation. With various special nozzles, this switch is used for a variety of position detections.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [High precision]
- Highly accurate variable-adjustment is possible with the precise linear needle.
- Min. detection distance 0.01 mm
- Resolution ±0.005 mm
- Stable detection, unaffected by fluctuations in supply pressure, is also possible with the air bridge circuit. [Low air consumption]
- This switch is used with low pressure so air consumption is reduced. [Lock mechanism with dial scale]
Variantes de la serie
| Model No. | Product name | Orifice size | Working pressure (kPa) | Detection range (mm) | Remarks |
|---|---|---|---|---|---|
| HPS-※ | Single unit | φ0.5, φ0.7, φ1.0 | 50 to 200, 100 to 200 | 0.01 to 0.2, 0.02 to 0.3, 0.05 to 0.7 | |
| MHPS-※ | Manifold | φ0.5, φ0.7, φ1.0 | 50 to 200, 100 to 200 | 0.01 to 0.2, 0.02 to 0.3, 0.05 to 0.7 | |
| UHPS-※ | Unit | φ0.5, φ0.7, φ1.0 | 50 to 200, 100 to 200 | 0.01 to 0.2, 0.02 to 0.3, 0.05 to 0.7 | |
| APA4-D | Back pressure nozzle | Discontinued · 2026 07 31 Old Catalog Old Manual APA4-DH has been discontinued on 31st July, 2026 · APA4-DA will be discontinued on May, 2027 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- HPS・MHPS・UHPS
- Línea
- Pneumatic pressure sensors
- Categoría
- Sensores
- Precio y entrega
- Por cotización
