Serie CKD

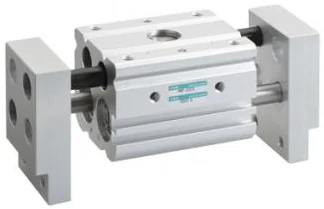

HMF
Compact Wide Parallel HandIt is a wide parallel hand with a low overall height and a wide range of applications. Newly added to the variation is a coolant resistant specification. Durability is improved even in environments where coolant is splashed. · [Operation stroke] · HMF · Standard: 30, 40, 50, 70, 100 mm · Long stroke: 60/80/100/120/160/200mm · HMF-G · Standard: 30, 40, 50 mm · Long stroke 1: 60/80/100/120 mm
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Small / lightweight / compact]
- Low overall height for effective utilization of limited space.
- Body realizes a simple compact design. [Powerful gripping force]
- Double piston mechanism realizes powerful gripping force. [Long stroke length]
- Operating stroke length of the jaw is long and combination adjustments are unnecessary. [Open / close confirmation switch]
- 2 proximity switches can be installed. [Coolant resistant type]
Variantes de la serie
| Model No. | Product name | Stroke | Bore size | Port size | Remarks |
|---|---|---|---|---|---|
| HMF | Double acting | 20~100mm | Φ12×2, Φ16×2, Φ20×2, Φ25×2, Φ32×2, Φ40×2 | M5, Rc1/8 | |
| HMF-※-L1 | Double acting | 60~160mm | Φ16×2, Φ20×2, Φ25×2, Φ32×2, Φ40×2 | M5, Rc1/8 | |
| HMF-※-L2 | Double acting | 80~200mm | Φ16×2, Φ20×2, Φ25×2, Φ32×2, Φ40×2 | M5, Rc1/8 | |
| HMF-G | Double acting, coolant resistant specifications | 30~50mm | φ16×2,φ20×2,φ25×2 | M5 | |
| HMF-G-※-L1 | Double acting, coolant resistant specifications | 60~100mm | φ16×2,φ20×2,φ25×2 | M5 | |
| HMF-G-※-L2 | Double acting, coolant resistant specifications | 80~120mm | φ16×2,φ20×2,φ25×2 | M5 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- HMF
- Línea
- Wide Parallel Hand
- Categoría
- Neumática
- Precio y entrega
- Por cotización
