Serie CKD

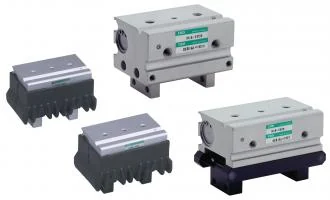

HLA・HLB・HLAG・HLBG
Thin parallel handThin and compact parallel hand. · Smooth operation realized with high precision, and environmental resistance achieved if rubber cover is attached. · [Operating stroke length] · HLA/HLAG: 15, 20, 25 mm · HLB/HLBG: 13, 18, 23 mm
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Bush guide] (HLA / HLAG Series)
- Uses a shock resistant bush guide. [Supports both large and small workpieces]
- Compact design with low overall height.
- Operating stroke length of the jaw is long and combination adjustments are unnecessary. [Cross roller type] (HLB / HLBG series)
- Cross roller type bearing guide realizes smooth and high precision operation. [Improved environmental resistance] (HLAG / HLBG series)
- Mist and dust are prevented from entering by installing a rubber cover to the slide part, and environmental resistance is improved. [Open / close confirmation switch]
Variantes de la serie
| Model No. | Product name | Option | Bore size | Port size | Remarks |
|---|---|---|---|---|---|
| HLA | Double acting: Bush guide | - | Φ12, Φ15, Φ20 | M5 | |
| HLB | Double acting: Bearing guide | - | φ12, φ15, φ20 | M5 | |
| HLAG | Double acting: Bush guide | With nitrile rubber guard | φ12, φ15, φ20 | M5 | |
| HLBG | Double acting: Bearing guide | With nitrile rubber guard | φ12, φ15, φ20 | M5 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- HLA・HLB・HLAG・HLBG
- Línea
- Low-profile Parallel Hand
- Categoría
- Neumática
- Precio y entrega
- Por cotización
