Serie CKD

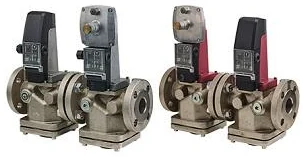

GRV
Medium Pressure Gas Combination Valve【Japan only release】【NEW】A hydrogen gas compatible option is added to the working fluid to guarantee use with hydrogen gas. In order to identify the hydrogen gas line, the dedicated color (red) is used on the bonnet, etc., and the hydrogen nameplate is attached. · The medium pressure (0.3MPa) governor is integrated with the secondary side shut-off valve to significantly reduce pressure loss. Compared with the conventional product (TAC-25), the flow rate at the same differential pressure is increased by 300%! Stable pressure control is realized even at high flow rates.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- 【High flow, space saving】
- Flow rate: about 3 fold
- Face to face: 20% reduction
- * Ratio compared to our conventional product (TAC-25) 【Medium pressure B】 (up to 0.3 MPa)
- Port size: 40A (flange).
- Select secondary orifice Ø15, Ø25, Ø40.
Variantes de la serie
| Model No. | Product name | Secondary side orifice | Option | Remarks |
|---|---|---|---|---|
| GRV-1 | ON-OFF control【Japan only release】 | Ø15, Ø25, Ø40 | POC switch, pressure gauge (included) can be selected | |
| GRV-2 | Pressure reduction control【Japan only release】 | Ø15, Ø25, Ø40 | POC switch, pressure gauge (included) can be selected |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- GRV
- Línea
- Gas combustion systems
- Categoría
- Neumática
- Precio y entrega
- Por cotización
