Serie CKD

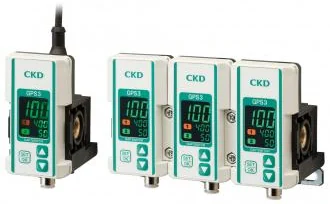

GPS3・MGPS3・UGPS3
Digital gap switchWide-range gap switch with digital display for even easier use. · First in the industry! High precision 2-point output enables easy operation.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [High precision 2-point output]
- Two thresholds within the detection distance range can be set, and in addition to precise contact check, rough contact state in posture confirmation can be detected with a single unit.
- In addition to the conventional wide range type with the detection range of 0.03 to 0.4 mm, a short range type with the range of 0.02 to 0.15 mm is also available. [Blockage indicator lamp]
- A light blinks to indicate a blockage in the detector air flow path.
- The blinking period indicates which locations are likely to be blocked, enabling rapid recovery. [Orifice easy disassembly]
- Orifice blockages can be cleaned without having to disassemble the assembled product. [Easy operation]
Variantes de la serie
| Model No. | Product name | Working pressure (kPa) | Detection range (mm) | Reference value display range | Remarks |
|---|---|---|---|---|---|
| GPS3 | Single unit | 50 to 200 | 0.02 to 0.15, 0.03 to 0.4 | 10 to 200, 20 to 500 | |
| MGPS3 | Manifold | 50 to 200 | 0.02 to 0.15, 0.03 to 0.4 | 10 to 200, 20 to 500 | |
| UGPS3 | Unit | 50 to 200 | 0.02 to 0.15, 0.03 to 0.4 | 10 to 200, 20 to 500 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- GPS3・MGPS3・UGPS3
- Línea
- Pneumatic pressure sensors
- Categoría
- Sensores
- Precio y entrega
- Por cotización
