Serie CKD
FSM2

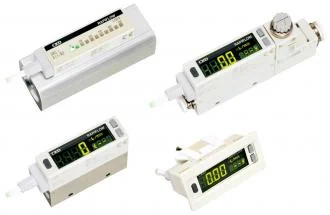

P5* / P7* Series for Cleanrooms Compact flow rate sensor for gas RAPIFLOW®【Discontinued model】 · Alternative model : FSM3 Series · *Separated display FSM2-D Series is still on sale. · · A small flow sensor for gas with 2-screen 2-color display. It offers two types: integrated and separated display. · P70 : Prevent dust generation · P80 : Oil prohibited
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Compact even with large flow rate]
- Flow rate range: 0.5 to 1,000 ℓ/min
- With the 500 and 1000 ℓ/min types, the body size has been reduced by 30% compared to conventional models, attaining high downsizing. [Straight piping section not required]
- As a rectifier mechanism is built in, straight piping sections are not required at either the upstream or downstream sides, allowing it to be installed anywhere. [Bi-directional measurement]
- The flow direction can be randomly set for measurement with the display integrated bi-directional type. [High-speed response]
- The platinum sensor chip manufactured with silicon micromachining realizes the response time of 50 m/sec. [Clean-room specifications]
Variantes de la serie
| Model No. | Product name | Flow rate range (L/min) | Port size (φ, Rc) | Remarks |
|---|---|---|---|---|
| FSM2-A | Display separated (for cleanrooms) | 0.5 to 1000 | 4 to 10, 1/8, 1/4, 1/2 | Discontinued · 2022 01 31 |
| FSM2-N | Display integrated (switch output NPN 2 points, analog output 1 point) (for cleanrooms) | 0.5 to 1000 | 4 to 10, 1/8, 1/4, 1/2 | Discontinued · 2022 01 31 |
| FSM2-P | Display integrated (switch output PNP 2 points, analog output 1 point) (for cleanrooms) | 0.5 to 1000 | 4 to 10, 1/8, 1/4, 1/2 | Discontinued · 2022 01 31 |
| FSM2-D | Separated display (for cleanrooms) |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- FSM2
- Línea
- Flow sensors / controllers
- Categoría
- Sensores
- Precio y entrega
- Por cotización
