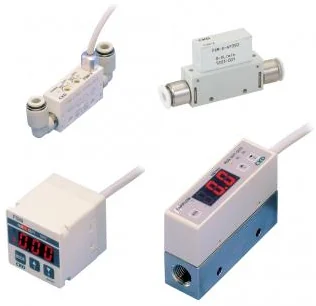

Serie CKD
FSM
Miniature flow rate sensor for gas RAPIFLOW®Miniature flow sensor for compressed air and nitrogen gas. It is ideal for checking suction of electronic parts and the like thanks to its light weight and high-speed response.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Miniature/lightweight] (FSM-X Series)
- Compact body enabled by separating the sensor head.
- Reduced volume by 52% compared to conventional products, light weight of 4 g and ultra-thin 8 mm are realized.
- It is available as sensor head only and with flow path block. [Non-linear characteristics] (FSM-X Series)
- Since the analog output has non-linear characteristics, the resolution in low flow rate range is improved. [High-speed response] (FSM-V / FSM-X Series)
- 5 ms high-speed response has made possible a design once abandoned [Bi-directional measurement] (FSM-V / FSM-X Series)
Variantes de la serie
| Model No. | Product name | Port size (φ, M) | Remarks |
|---|---|---|---|
| FSM-H | Fine flow rate | Rc1/8, G1/8 | |
| FSM-V | Flow rate sensor [linear] | 1.8,4,5 | |
| FSM-VFM | Inline filter dedicated for FSM/FSM-V | - | |
| FSM-V-D | Display | - | |
| FSM-X | Flow rate switch [non-linear] | 4,5 | |
| FSM-A | Analog output 1 point | Discontinued · 2009 03 31 【Discontinued model】 · Alternative model : FSM2 Series | |
| FSM-N | Switch output NPN 2 points, analog output 1 point | Discontinued · 2009 03 31 【Discontinued model】 · Alternative model : FSM2 Series | |
| FSM-P | Switch output PNP 2 points, analog output 1 point | Discontinued · 2009 03 31 【Discontinued model】 · Alternative model : FSM2 Series |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- FSM
- Línea
- Flow sensors / controllers
- Categoría
- Sensores
- Precio y entrega
- Por cotización
