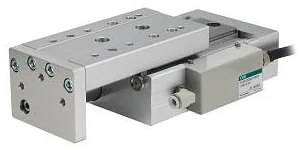

FLCR-G-P4

P4* Series for Rechargeable battery manufacturing processes Electric actuator Table typeThis electric actuator can be used safely in the rechargeable battery manufacturing process. Uses grease for ultra-dry environments, and has a long service life even at a dew point of -70°C. · The table type electric actuator has a a short stroke and is ideal for transporting and positioning workpieces. · The actuator has a built-in motor that allows for arbitrary adjustments of acceleration/deceleration, eliminating the need for a shock absorber. Space saving is realized. · The body has dimensional compatibility with the pneumatic LCR Series, allowing for compact and pneumatic-like design. · P4：The use of copper, zinc, and nickel-based materials and electrolytic nickel plating is limited in the construction of the flow path part and sliding part. · 【Compatible controllers】 · ECG-B・ECMG · * Please see "Related Products" for details on the controller.

• [Improvement of equipment reliability]
• Uses grease for ultra-dry environments, and has a long service life even at a dew point of -70°C. An optional suction port can be mounted. Suction from the port reduces the possibility of particles from moving parts of the electric actuator leaking outside. 【More Space Saving of Equipment】
• Since the motor is built into the actuator, there are no projections or folds in the motor assembly.
• Therefore, space saving of equipment is possible. 【Flexible Production】
• Unlike pneumatic cylinders, electric actuators can perform multipoint positioning anywhere.
• As one actuator can handle the production of various types of products, this contributes to space savings. 【Expanded Options】
