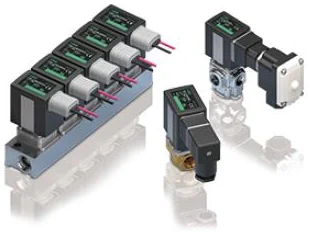

FFB・FFG

Direct acting 2, 3-port solenoid valve MULTI-FIT®[NEW] A new high-temperature fluid compatible option (MAX 143°C) has been added to the Multi-fit Valve series, which supports a wide variety of fluids. · · MULTI-FIT® for multi-fluids · The functions required for fluid control valves have been · integrated into a single body. · Reliability is further enhanced with standard features required for various applications, and a single series can handle a wide variety of fluids. · In addition, we will contribute to carbon neutrality by reducing waste through long service life and reducing CO2 emissions through energy conservation.

• 【NEW: Addition for High-Temperature Fluids】
• By adopting a Class H coil, this valve is compatible with steam up to 143°C and other fluids up to 90°C. [NEW: Bronze Added to Body Materials] [Improved corrosion resistance and high durability of 20 million cycles realized]
• (under CKD test conditions)
• High corrosion resistant run materials are used for the plunger/flare pipe, and dezincified brass material is used for the body.
• The integrated plunger and wear ring achieves the same durability as general air, even with dry air.
• The flare pipe is integrally molded without welding. [Coil with full-wave rectifier](AC)
