Serie CKD
FCS

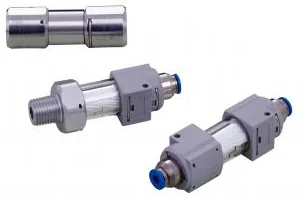

P5* / P7* Series for Cleanrooms Inline clean filterInline clean filter with hollow fiber membrane for filter element provides high performance in all aspects including filtration performance, flow rate, pressure loss, service life and installation space. · P90 : Oil prohibited · P94 : Oil prohibited, Stainless steel used, Without copper,silicon,or halogen-based materials
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Adopts original hollow fiber membrane]
- Hollow fiber membrane element has enabled 0.01 μm high precision filtration and 99.99% removal efficiency.
- The resin type has a transparent case so dirt on the element can be visually checked. [Long service life]
- Considerably longer service life. Approximately five times longer than the flat membrane type.
- Three to ten times filtration area enables larger flow rate and less pressure loss than the flat membrane type of the same capacity.
- Lighter and more compact at the same flow rate. [Applications]
Variantes de la serie
| Model No. | Product name | Port size | Processing flow rate (ℓ/min [ANR]) | For clean room | Remarks |
|---|---|---|---|---|---|
| FCS500 | Resin (for cleanrooms) | 'R1/8, R1/4, φ4, φ6, φ8 | 50 | Clean / Oil prohibited | |
| FCS500-P9※ | Stainless steel (for cleanrooms) | 'Rc1/8, Rc1/4 | 50 / 80 | P90, P94 | |
| FCS1000 | Resin (for cleanrooms) | R1/4, R3/8, Rc1/4, Rc3/8, φ8, φ10, φ12 | 300 to 400 | Clean / Oil prohibited | |
| FCS1000-P9※ | Stainless steel (custom order) (for cleanrooms) | Rc1/4, Rc3/8 | 300 to 400 | P90, P94 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- FCS
- Línea
- Filters
- Categoría
- Neumática
- Precio y entrega
- Por cotización
