Serie CKD

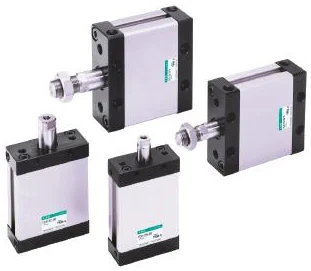

FCD-P4※
P4* Series for Rechargeable battery manufacturing processes Flat compact cylinderThis cylinder is a rectangular space saving cylinder that reduces cylinder axial dimensions by 50% and enables easy installation into a small space. The bore section is oval and a rotation-stop function is provided. · · P4：The use of copper, zinc, and nickel-based materials and electrolytic nickel plating is limited in the construction of the flow path part and sliding part. · P40：The use of copper, zinc, and nickel-based materials, zinc plating, and electrolytic nickel plating is limited in the construction of all parts.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Space saving]
- Reduced cylinder width by 50% by adopting an oval piston. (compared to our compact cylinders) [Rotation-stop not required]
- Due to the oval piston structure, a separate rotation-stop is unnecessary. [Flexible mounting surface]
- Mounting holes are provided on the cover and it is possible to install from all sides.
Variantes de la serie
| Model No. | Product name | Bore size | Standard stroke length (mm) | Compatibility | Remarks |
|---|---|---|---|---|---|
| FCS-P4※ | Single acting / push (Rechargeable battery manufacturing processes) | Φ25, Φ32相当 | 5, 10, 20 | ||
| FCH-P4※ | Single acting / pull (Rechargeable battery manufacturing processes) | Φ25, Φ32相当 | 5, 10, 20 | ||
| FCD-P4※ | Double acting / single rod (Rechargeable battery manufacturing processes) | Φ25, Φ32, Φ40, Φ50, Φ63 | 5, 10, 15, 20, 25 | ||
| FCD-D-P4※ | Double acting/ double rod (Rechargeable battery manufacturing processes) | Φ25, Φ32, Φ40, Φ50, Φ63相当 | 5, 10, 15, 20, 25 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- FCD-P4※
- Línea
- Space saving cylinders
- Categoría
- Neumática
- Precio y entrega
- Por cotización
