Serie CKD
FAB・GFAB・FAG・GFAG

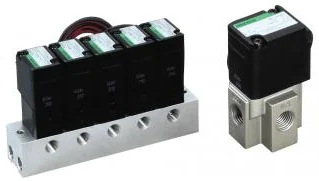

Direct acting 2, 3-port solenoid valve for compressed air (Special purpose valve)【Discontinued model】 · Alternative model : FFB・FFG Series · · Direct acting solenoid valve for compressed air. With an aluminum body, it is lightweight, compact and consumes low power, which contributes to reducing the environmental load of equipment and systems.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Lightweight and compact]
- Aluminum body adopted to achieve lighter weight, compact design with thin coil. [Low power consumption]
- Low-watt coil used.
Variantes de la serie
| Model No. | Product name | Size | Orifice (mm) | Port size | Remarks |
|---|---|---|---|---|---|
| FAB11 | 2-port/NC | 18 mm width | φ1, 1.5 | M5 | Discontinued · 2023 12 28 |
| FAB21 | 2-port/NC | 22 mm width | φ1.5, 2 | Rc1/8 | Discontinued · 2023 12 28 |
| FAB31 | 2-port/NC | 28 mm width | φ2, 3, 5 | Rc1/8, 1/4 | Discontinued · 2023 12 28 |
| FAB41 | 2-port/NC | 34 mm width | φ3, 4, 7 | Rc1/4, 3/8 | Discontinued · 2023 12 28 |
| FAB51 | 2-port/NC | 40 mm width | φ4, 5, 7, 10 | Rc3/8, 1/2 | Discontinued · 2023 12 28 |
| FAB32 | 2-port/NO | 28 mm width | φ2, 3, 5 | Rc1/8, 1/4 | Discontinued · 2023 12 28 |
| FAB42 | 2-port/NO | 34 mm width | φ3, 4, 7 | Rc1/4, 3/8 | Discontinued · 2023 12 28 |
| FAB52 | 2-port/NO | 40 mm width | φ4, 5, 7 | Rc1/4, 3/8 | Discontinued · 2023 12 28 |
| GFAB | 2-port/manifold | - | - | - | Discontinued · 2023 12 28 |
| FAG11 | 3-port/universal | 18 mm width | φ0.81.5 | M5 | Discontinued · 2023 12 28 |
| FAG21 | 3-port/universal | 22 mm width | φ1, 2 | Rc1/8 | Discontinued · 2023 12 28 |
| FAG31 | 3-port/universal | 28 mm width | φ1.5, 2, 3 | Rc1/8, 1/4 | Discontinued · 2023 12 28 |
| FAG33 | 3-port/NC pressurization | 28 mm width | Φ1.5, 2, 3 | Rc1/8, 1/4 | Discontinued · 2023 12 28 |
| FAG41 | 3-port/universal | 34 mm width | φ2, 3, 4 | Rc1/4, 3/8 | Discontinued · 2023 12 28 |
| FAG43 | 3-port/NC pressurization | 34 mm width | φ2, 3, 4 | Rc1/4, 3/8 | Discontinued · 2023 12 28 |
| FAG51 | 3-port/universal | 40 mm width | φ2, 3, 4 | Rc1/4, 3/8 | Discontinued · 2023 12 28 |
| GFAG | 3-port/manifold | - | - | - | Discontinued · 2023 12 28 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- FAB・GFAB・FAG・GFAG
- Línea
- Solenoid valves for dedicated fluids
- Categoría
- Neumática
- Precio y entrega
- Por cotización
