Serie CKD
F・FH・Ｕ・NU・KX・SR2・PFH・PFS・ET

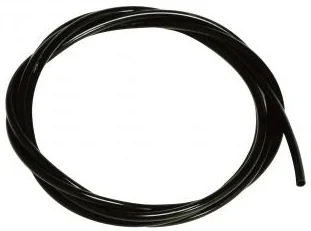

P4* Series for Rechargeable battery manufacturing processes TubeTubes can be selected according to applications. They are highly reliable, meeting needs of space saving and complex piping, etc. · · The use of copper, zinc, and nickel-based materials and electrolytic nickel plating is limited in the construction of the flow path part and sliding part as standard.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Soft nylon tube]
- Very flexible compared to the conventional nylon tubes, optimal for piping in small or complicated spaces.
- The tube also has sufficient characteristics such as cold resistance, weather resistance, oil resistance and chemical resistance, etc. [New urethane tube]
- Due to the adoption of a new manufacturing process, larger inner diameter and increased strength are realized simultaneously with the same outer diameter.
- As a tube for pneumatic piping to respond to larger flow rates, it also contributes economically. [Urethane tube]
- Durable and flexible thanks to its high mechanical strength.
Variantes de la serie
| Model No. | Product name | O.D. tube size | Length per roll (m) | Tube color | Remarks |
|---|---|---|---|---|---|
| F-15※※ | Soft nylon tube (Rechargeable battery manufacturing processes) | Φ3.2, Φ4, Φ6, Φ8, Φ10, Φ12, Φ15, Φ16 | 20, 100 | Black, white, red, blue, yellow, green, orange | |
| FH-3224 | Soft nylon tube (Rechargeable battery manufacturing processes) | Φ3.2 | 20 | Black / white | |
| NU | New urethane tube (Rechargeable battery manufacturing processes) | Φ4, Φ6, Φ8, Φ10, Φ12 | 20, 100 | Black / white | |
| U-92※※ | Soft urethane tube (Rechargeable battery manufacturing processes) | Φ4, Φ6, Φ8, Φ10, Φ12 | 20, 100 | Black, transparent, pure white, red, blue, yellow, green, orange | |
| U-95※※ | Urethane tube (Rechargeable battery manufacturing processes) | Φ3.2, Φ4, Φ6, Φ8, Φ10, Φ12 | 20, 100 | Black / transparent | |
| KX-12※※ | Coiling tube (Rechargeable battery manufacturing processes) | Φ6, Φ8, Φ10, Φ12 | ‐ | Orange | |
| SR | Flame-resistant tube (Rechargeable battery manufacturing processes) | Φ4, Φ6, Φ8, Φ10, Φ12 | 100 | Black / red / blue / green |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- F・FH・Ｕ・NU・KX・SR2・PFH・PFS・ET
- Línea
- Fittings / tubes
- Categoría
- Neumática
- Precio y entrega
- Por cotización
