Serie CKD
EX4

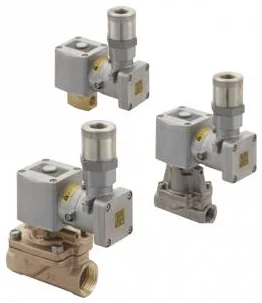

Solenoid valve (explosion-proof general purpose valve)Explosion-proof solenoid valve compatible with various fluids. Certified as ExdIIBT4 by international standard (IEC) guidelines and can be used in explosion-proof areas.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [International standard compliance]
- Compliant with the international explosion-proof guidelines of Technology Institution of Industrial Safety (TIIS). [South Korea compliance]
- Korea explosion-proof certification (KOSHA) acquired. [Degree of protection]
- IP65 or equivalent, usable outdoors.
Variantes de la serie
| Model No. | Product name | Working pressure (MPa) | Port size | Remarks |
|---|---|---|---|---|
| AB41EX4 | 2-port direct acting/NC | 0 to 5 | Rc1/4, Rc3/8 | |
| AG41EX4 | 3-port direct acting/universal | 0 to 1 | Rc1/4, Rc3/8 | |
| AG43EX4 | 3-port direct acting/NC pressurization | 0 to 0.7 | Rc1/4, Rc3/8 | |
| AG44EX4 | 3-port direct acting/NO pressurization | 0 to 1.5 | Rc1/4, Rc3/8 | |
| AP11EX4 | 2-port pilot operated piston drive/NC | 0.02 to 1.2 | Rc1/2, Rc3/4, Rc1 | |
| AP21EX4 | 2-port pilot operated piston drive/NC | 0.05 to 1.2 | Rc1 1/4, Rc1 1/2, Rc2, 32 flange, 40 flange, 50 flange | |
| AD11EX4 | 2-port pilot operated diaphragm drive/NC | 0.02 to 1 | Rc1/2, Rc3/4, Rc1 | |
| AＤ21EX4 | 2-port pilot operated diaphragm drive/NC | 0.02 to 0.7 | Rc1 1/4, Rc1 1/2, Rc2, 32 flange, 40 flange, 50 flange | |
| ADK11EX4 | 2-port pilot kick diaphragm drive/NC | 0 to 1 | Rc1/2, Rc3/4, Rc1 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- EX4
- Línea
- Explosion-proof 2, 3-port solenoid valves
- Categoría
- Neumática
- Precio y entrega
- Por cotización
