Serie CKD

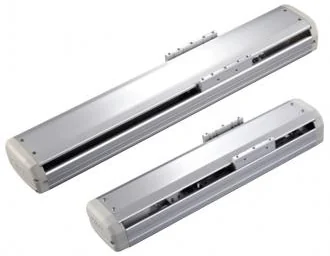

ETS-FP1
FP* Series for Food manufacturing processes Electric actuator[NEW] Added Motor Manufacturer for Support · A motorless specification of an electric actuator that allows you to install and control motors from each manufacturer. Ball screw drive type with two built-in linear guides for excellent rigidity. · · strokes:50~1500mm · Maximum portable mass (horizontal): 150kg · Maximum speed: 2000mm/s · FP1 : Food grade lubricant (NSF H1) is used for flow paths and sliding parts.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Each Motor can be installed]
- A bracket is provided that matches the 13 servo motors and the three stepping motors. Combined with your own motors, it is available under familiar control. Each field network is supported. [Easy Maintenance]
- The optional grease nipple can be supplied directly from the outside. with no decomposition of the body Maintenance of guides and ball screws. 【Extensive motor mounting directions】
- A total of 5 types of motor mounting directions are available.
- Select according to the equipment space.
Variantes de la serie
| Model No. | Product name | Body width | Max. load capacity (horizontal) | Max. load capacity (vertical) | Remarks |
|---|---|---|---|---|---|
| ETS-13-FP1 | Electric actuator Slider type (food manufacturing processes) | 135mm | 70kg | 17kg | |
| ETS-14-FP1 | Electric actuator Slider type (food manufacturing processes) | 135mm | 110kg | 33kg | |
| ETS-17-FP1 | Electric actuator Slider type (food manufacturing processes) | 170mm | 120kg | 50kg | |
| ETS-22-FP1 | Electric actuator Slider type (food manufacturing processes) | 220mm | 150kg | 55kg | |
| ETS-05-FP1 | Electric actuator Slider type (food manufacturing processes) | 51mm | 10kg | 7kg | Discontinued · 2018 12 28 |
| ETS-06-FP1 | Electric actuator Slider type (food manufacturing processes) | 65mm | 30kg | 15kg | Discontinued · 2018 12 28 |
| ETS-10-FP1 | Electric actuator Slider type (food manufacturing processes) | 102mm | 50kg | 12kg | Discontinued · 2024 08 31 |
| ETS-12-FP1 | Electric actuator Slider type (food manufacturing processes) | 102mm | 50kg | 12kg | Discontinued · 2024 08 31 |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- ETS-FP1
- Línea
- Motorless
- Categoría
- Neumática
- Precio y entrega
- Por cotización
