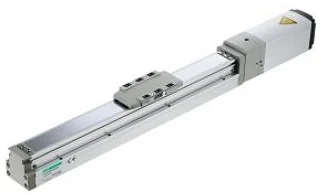

EJSG-P4

P4* Series for Rechargeable battery manufacturing processes Electric actuator Slider typeThis electric actuator can be used safely in the rechargeable battery manufacturing process. Uses grease for ultra-dry environments, and has a long service life even at a dew point of -70°C. This model uses an outer rail guide to achieve compactness and high rigidity. It contributes to space saving of equipment by reducing the size of the actuator.When connecting with the multi-axis controller ECMG Series, a significant increase in basic actuator performance is realized. · · P4：The use of copper, zinc, and nickel-based materials and electrolytic nickel plating is limited in the construction of the flow path part and sliding part. · 【Compatible controllers】 · ECG-A・ECMG · * Please see "Related Products" for details on the controller.

• [Improvement of equipment reliability]
• Uses grease for ultra-dry environments, and has a long service life even at a dew point of -70°C. An optional suction port can be mounted. Suction from the port reduces the possibility of particles from moving parts of the electric actuator leaking outside. [Significantly improved performance]
• When connecting with the multi-axis controller ECMG Series, a significant increase in basic actuator performance is realized.
• Improved payload by speed is up to 5 times higher than conventional models, and maximum speed is up to 2 times higher.
• *When connecting with the multi-axis controller ECMG Series 【Compact body with high rigidity】
• An outer rail is used for the guide.
