Serie CKD

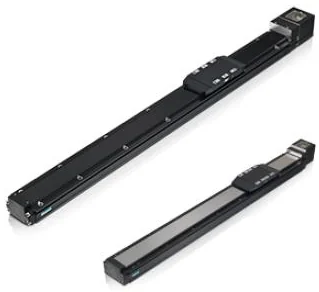

EFS
Electric Actuator Motorless Specification Slider 【Special specifications】Thin, lightweight electric actuator. Contributes to the downsizing and weight reduction of equipment. The black body color reduces light reflection during image inspections.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Ideal for Image Inspection Processes]
- A black body color is used as standard. Suppressing light reflection improves stability during image inspections.
- The steel belt can also be changed to black as an option. [Ideal for the Z-axis of Orthogonal Axis Systems]
- Compared to conventional products, this model is thinner and lighter. Body height has been reduced by up to 33% and body weight by approximately 30%.
- Allows for optimization of multi-axis combinations. [Long Stroke Compatibility]
- Despite its thin body, the supported stroke has been expanded compared to conventional low profiles.
Variantes de la serie
| Model No. | Product name | Max. payload | Max. stroke | Repeatability | Remarks |
|---|---|---|---|---|---|
| EFS-05 | Electric actuator Slider type【Special specifications】 | 30 kg (horizontal) 10 kg (vertical) | 1,000㎜ | ±0.01㎜ | |
| EFS-08 | Electric actuator Slider type【Special specifications】 | 30 kg (horizontal) 10 kg (vertical) | 1,250㎜ | ±0.01㎜ |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- EFS
- Línea
- Budding products【Special-order product】
- Categoría
- Neumática
- Precio y entrega
- Por cotización
