Serie CKD

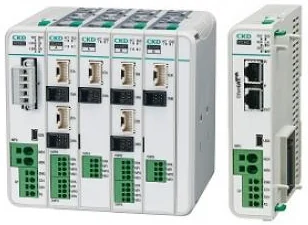

ECMG
Multi-axis controller[NEW] I/O Unit Added · [NEW] PROFINET Specification Added · Connectable to various types of actuators and compatible with a wide range of applications. Multi-axis controller for electric actuators that can connect up to 16 axes. Connecting to the multi-axis controller further enhances the performance of the actuator and greatly improves portability and speed performance. Multi-axis connection reduces the installation space. The power supply system can be selected from three types, and the number of connected axes is not limited by the current value.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [I/O Unit Added]
- Input devices and output devices can be consolidated into the electric controller.
- Realizes reduced wiring and space saving in transfer processes. [Reduces labor hours]
- Support for individual commons eliminates the need for common terminal blocks.
- Reduction of common terminal blocks significantly reduces wiring, terminal blocks, and labor hours inside the control panel. [Multi-axis connection is possible]
- Up to 2 axes can be connected per unit, and up to 8 units can be linked to control a maximum of 16 axes. A total of 8 types of actuators are supported.
Variantes de la serie
| Model No. | Product name | Unit name | Remarks |
|---|---|---|---|
| ECMG-C | Controller (communication unit) | Communication unit | [Interface specifications] · CC-Link, EtherCAT, EtherNet/IP, PROFINET |
| ECMG-D-A | Controller (drive unit : A type) | Drive unit : A type | [Compatible actuators] · EJSG, EBS-G, EBR-G, GSSD2, GSTK, GSTG, GSTS, GSTL Series |
| ECMG-D-B | Controller (drive unit : B type) | Drive unit : B type | [Compatible Actuators] · FLCR-G, FLSH-G, FGRC-G, GCKW Series |
| ECMG-S-X | Controller (IO unit : Input type) | IO unit : Input type | ・Input Type 8 points · ・ON voltage : 15.6 V or more · ・OFF current : 1 mA or less |
| ECMG-S-Y | Controller (IO unit : Output type) | IO unit : Output type | ・Output Type 8 points · ・Load voltage：DC24V±10％ · ・Load current：0.1A or less/point |
| ECMG-P | Controller (end unit) | End unit |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- ECMG
- Línea
- Controller
- Categoría
- Neumática
- Precio y entrega
- Por cotización
