Serie CKD

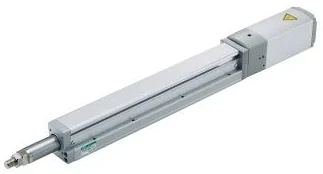

EBR-M-FP1
FP* Series for Food manufacturing processes Electric actuators Rod with built-in guide typeAn electric actuator with a built-in guide driven by a stepping motor. It is equipped with a batteryless absolute encoder. · · FP1 : Food grade lubricant (NSF H1) is used for flow paths and sliding parts. · [Supported controllers] · ECR · * Please see "Related Products" for details on the controller.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Esto es una SERIE, no un número de parte. El número completo se arma con el código de pedido del catálogo del fabricante. Escríbenos el código o tu aplicación en los comentarios de la cotización y te cotizamos la pieza exacta.
- [Achieves downsizing]
- Significantly improved performance with the new controller.
- The small body can also cover large loads, realizing downsizing. [Reduces the need for an additional guide]
- Built-in outer rail guide that can handle offset work. [Reduction of equipment downtime]
- Batteryless absolute encoder holds origin position information. After emergency stop and / or power OFF, early recovery is possible. [Reduction of the installation man-hours]
- Direct installation is possible without removing the cover from both upper and lower surfaces.
Variantes de la serie
| Model No. | Product name | Body width | Max. load capacity (horizontal) | Max. load capacity (vertical) | Remarks |
|---|---|---|---|---|---|
| EBR-04M-FP1 | Electric actuator Rod with built-in guide type (food manufacturing processes) | 44mm | 33.3kg | 10kg | Connect to Controller ECR Series |
| EBR-05M-FP1 | Electric actuator Rod with built-in guide type (food manufacturing processes) | 54mm | 80kg | 24kg | Connect to Controller ECR Series |
| EBR-08M-FP1 | Electric actuator Rod with built-in guide type (food manufacturing processes) | 82mm | 80kg | 38.3kg | Connect to Controller ECR Series |
Datos del producto
- Marca
- CKD
- Serie (modelo)
- EBR-M-FP1
- Línea
- Slider / Rod type
- Categoría
- Neumática
- Precio y entrega
- Por cotización
