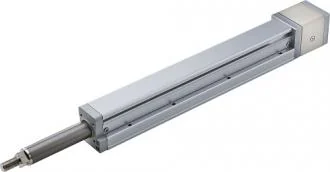

EBR-L

Electric actuator Rod with built-in guide type[NEW] Added Motor Manufacturer for Support · A motorless specification of an electric actuator that allows you to install and control motors from each manufacturer. · An outer rail system guide is built in which a body and a guide are integrated. It improves radial performance, is more resistant to offset work, and reduces the need for side-by-side guides. It is easy to install, because it allows the top of the body to be mounted. · · strokes:50~800mm · Maximum portable mass (horizontal): 110kg · Maximum speed: 1600mm/s

• [Space-saving]
• Although it is a rod type, it incorporates a wide-ranging guide, "Outer Rail," which is integrated with the body. By improving radial-resistant performance and reducing the need for side-by-side guides, the system contributes to space saving for the equipment. [Each Motor can be installed]
• A bracket is provided that matches the 12 servo motors and the three stepping motors. Combined with your own motors, it is available under familiar control. Each field network is supported. [Reduction of the installation man-hours]
• Direct installation is possible without removing the cover from both upper and lower surfaces. Significantly reduces working time especially when installing from the top.
